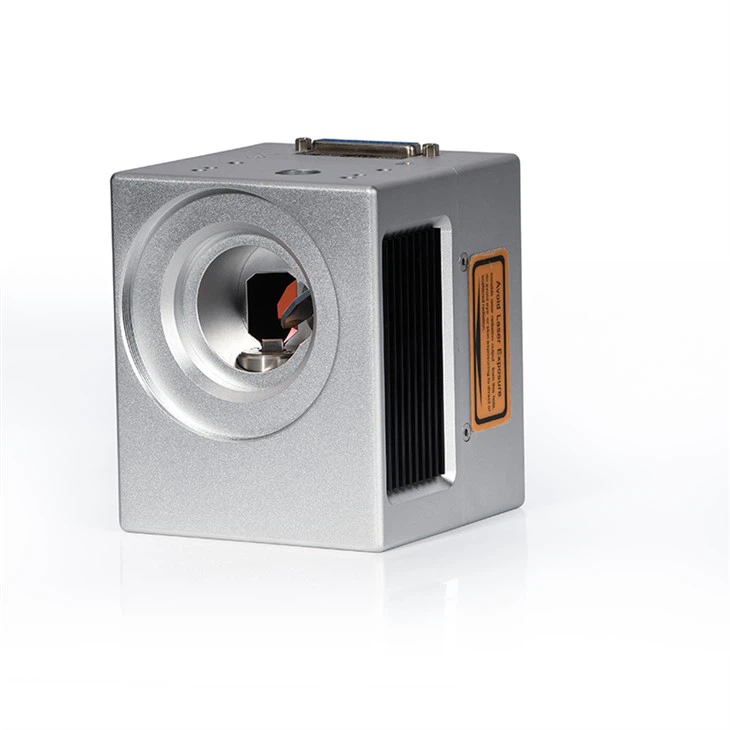

SOING A series is special designed for high accuracy applications and delivers excellent dynamics in a compact size. Our galvo scanner scanning head boasts high speed and precision, and offers a wide range of marking options to suit your unique needs. With rapid scanning capabilities and accurate placement, you can achieve flawless, high-quality markings every time. Choose from a variety of marking ranges. The f-theta lens is specially designed for using with the scan head. lt focuses the laser beam at maximum quality on any position within the designed working area.

1. Minimal temperature drift and extremely high repeat
2. positioning accuracy: They are also required to work stably and reliably for a long time and have strong and interference

3. Water-cooled version available
4. Various wavelengths available: 10mm/ 12mm/ 14mm/ 20mm/ 30mm
5. Waterproof and dust proof for industrial conditions
Water-proof, dust prevention and anti-corrosion, A series is able to work under bad environmental condition.

Scan head is specially designed for using with F-theta lens. lt focuses the laser beam at maximum quality on any position within the designed working area. The scan head is used to deflect a laser beam in the X and y direction and to focus the beam onto the working plane with an f-theta lens fitted to the beam exit hole. The deflection angles can be precisely adjusted by controlling the positions of the galvanometers.
